71M6515H Demo Board User’s Manual
?
?
?

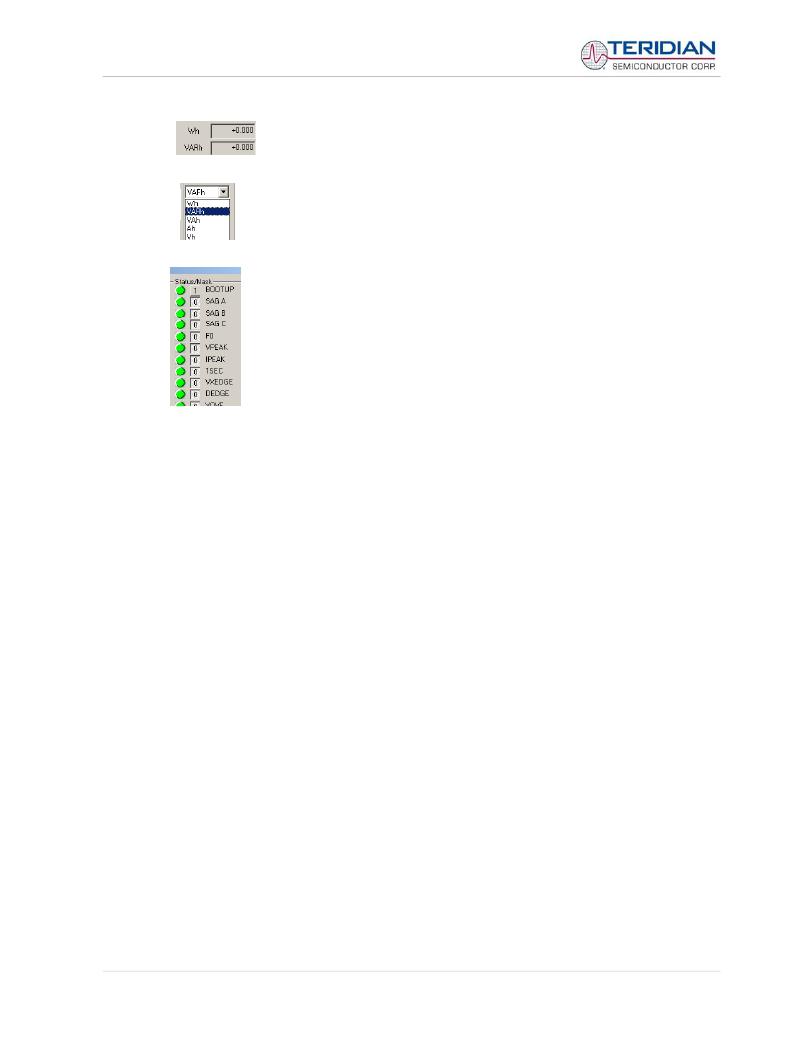

Display fields : Gray rectangular fields that indicate settings, measurements etc. of the 6515H chip.
These fields cannot be edited by the user.
List fields : Entry fields that allow selection from the pre-determined list of choices once the down-
pointing arrow is pressed (“pull-down” menus).
Indicator lights : Red and green activity indicators underneath the “Status/Mask” label.
Green lights mean no activity. Red lights mean that the corresponding bit in
the STATUS mask is set, i.e. the condition is true.
With an input signal (phase A, B, C voltage) present, the F0 light will be on
indicating that the square wave following the input signal is being
generated. The light at “1SEC” will blink red every second. Other lights will
stay green until the corresponding condition is true, e.g. when the input
signal meets a sag or over-voltage threshold.
A summary of all of the GUI window areas follows on the next pages.
Revision 2.0
? Copyright 2005 TERIDIAN Semiconductor Corporation
13 of 66
